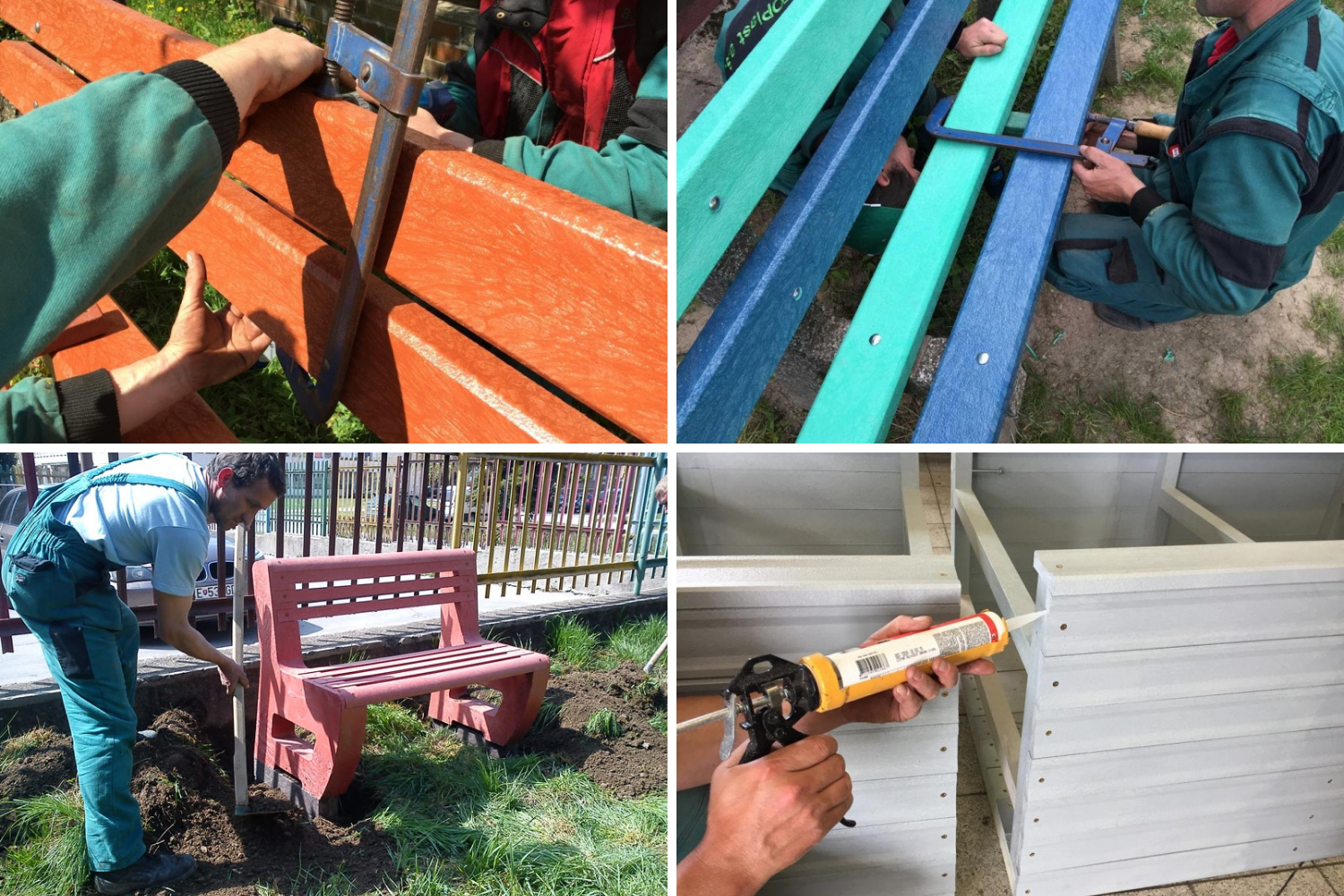

Assembly

 The installation of TOPeco, i.e. the full plastic profile, is very similar to that of wood.

We use exactly the same cutting and connecting material as when working with wood.

All materials such as metal, wood, plastic have their operating characteristics. Metal expands under the influence of heat, shrinks in winter, it is the same with plastic. It expands in summer and contracts in winter. That is why, for example, a 200 cm board needs to be anchored in 3 places to minimize the tension.
For plastic boards for fences and fencing (e.g. profile no. 12, i.e. D-100x25-2000 mm) we recommend using e.g. neck screws - ornamental with semi-round head, size
5 or 6 for a finished or ordinary nut - in the case of an iron jackel.

Of course, the customer can choose his own connector profile according to his own taste
material with different diameters and lengths, e.g. tex-self-tapping iron for PZ2 or hexagonal.

There are a lot of options, depending on the customer's taste or possibilities.

We recommend anchoring the two-metre fence board in three places, the one-metre board in two places. Plastic is a material that tends to increase in volume in summer temperatures and in in winter, so correct installation is very important.
When pre-drilling, it is better to use a 5.2 mm drill bit when using, for example, a bolt with a diameter of e.g. 5 mm, due to the diletation of the plate.

For the bench boards profile 18, (D-120x50-2200 mm) we use basically the same material as for the plastic boards for fences, but with a larger diameter,
e.g. an 8-gate bolt on benches with concrete construction, or two 5's on one side of the board.
We can reinforce the boards with iron - 20/5 strip, which will withstand even greater loads.

A common example of a bench, the board of which is 180 cm long and the distance between the supporting legs is approximately 150 cm, the use of reinforcement for a length of 155 cm is a necessity, especially for cities and towns.
If the metal structure is supported in three places, reinforcement is not needed.

Terrace boards, profile no. 19, D-120x40-2200 mm long, need to be supported in five places in the case of a structure, and in the case that the plate is 2x2 meters, it is also sufficient in four places.

For other materials to improve strength, we use e.g. threaded rods and anchors, which are also essential carpentry tools for strengthening and anchoring products.
If you are unsure about your installation, please do not hesitate to contact us, we will advise you.
